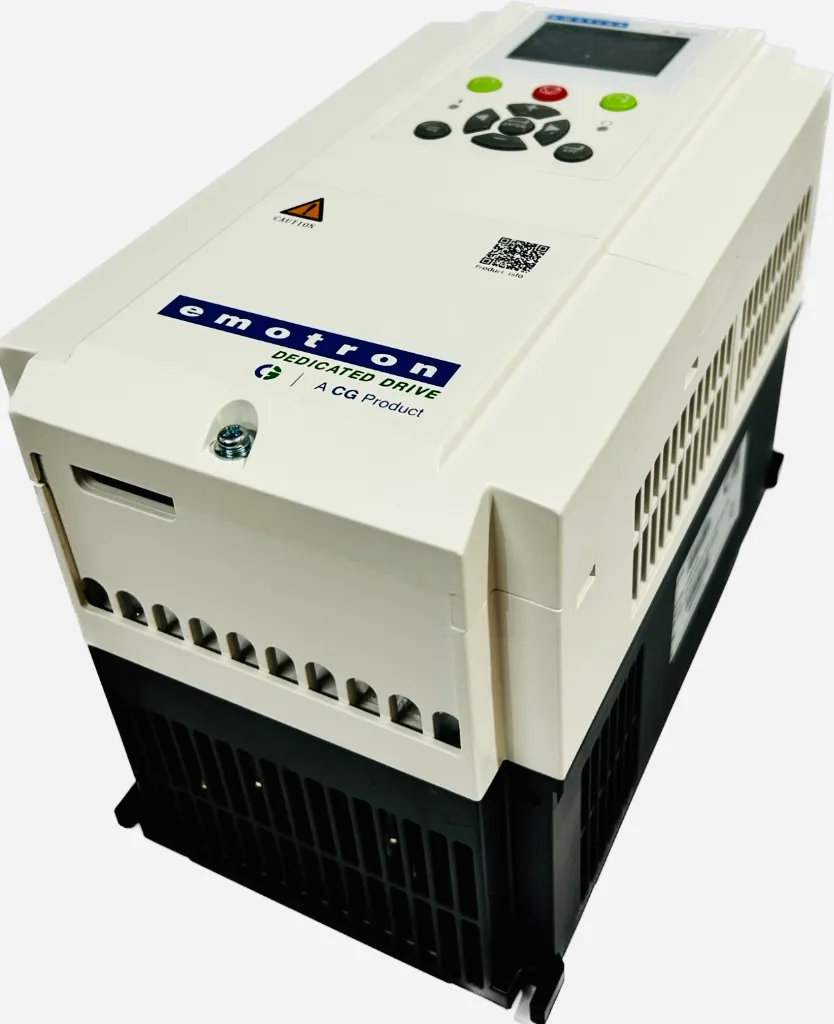

The CG Emotron VSR48-017 20CEB is a high-performance Solar Variable Frequency Drive (VFD) designed by CG Power and Industrial Solutions. Engineered for reliability and efficiency, this drive is a versatile solution for powering industrial and agricultural machinery using solar energy, backup generators, or the main grid.
With a robust power rating of 5.5kW (7.5HP), it is specifically optimized for heavy-duty applications such as solar water pumps, fans, flour mills, and cold storage systems.
Key Technical Specifications
Power Rating: 7.5kW / 10HP (Heavy Duty 150%)
Rated Output AC Current : 17A
Maximum Input DC Current: 30A
Recommended Solar Array Power: 11kWp
Input Voltage Flexibility:
Output Frequency: 0-600.00Hz (Default 0-50.00Hz)
Protection Grade: IP20
Why Choose the Emotron VSR48 Series?
Advanced MPPT Technology: Features a wide MPPT voltage range (450–600VDC) to ensure maximum power extraction from your solar panels even in fluctuating light conditions
Dual Supply Mode: Seamlessly switch between Solar PV input and a Three-phase AC grid or backup generator, ensuring 24/7 operational continuity
Multi-Motor Support: Compatible with both Induction Motors (IM) and Permanent Magnet Synchronous Motors (PMSM)
Comprehensive Built-in Protection: Safety is prioritized with integrated protection against lightning, over-voltage, over-current, short circuits, overheating, and water pump dry-run
Smart Control: Includes V/f control and Sensor-less vector control for precise motor management
Superior Communication: Comes with built-in Modbus RS485 support, with options for Profibus and Profinet for advanced industrial automation
Product Dimensions & Build
Dimensions (HxWxD): 249 x 146 x 181 mm
Weight: 3.4 kg

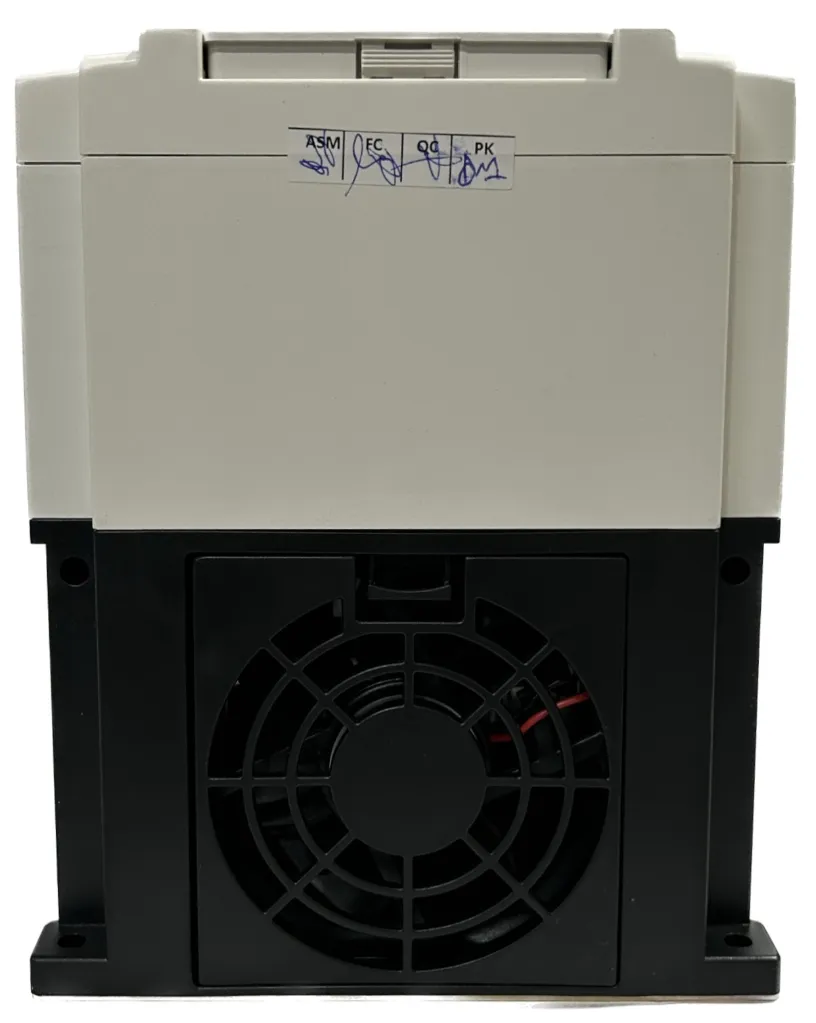

Cooling: Forced Air Cooling
Operating Temperature: -10°C to 50°C (up to 55°C with deration)
Common Applications
This drive is the perfect choice for high-demand environments including:
Agriculture: Solar water pumping systems.
Industrial: Fans, blowers, and air handling units.
Processing: Flour mills and conveyor systems.
Storage: Refrigeration and cold storage units19.
