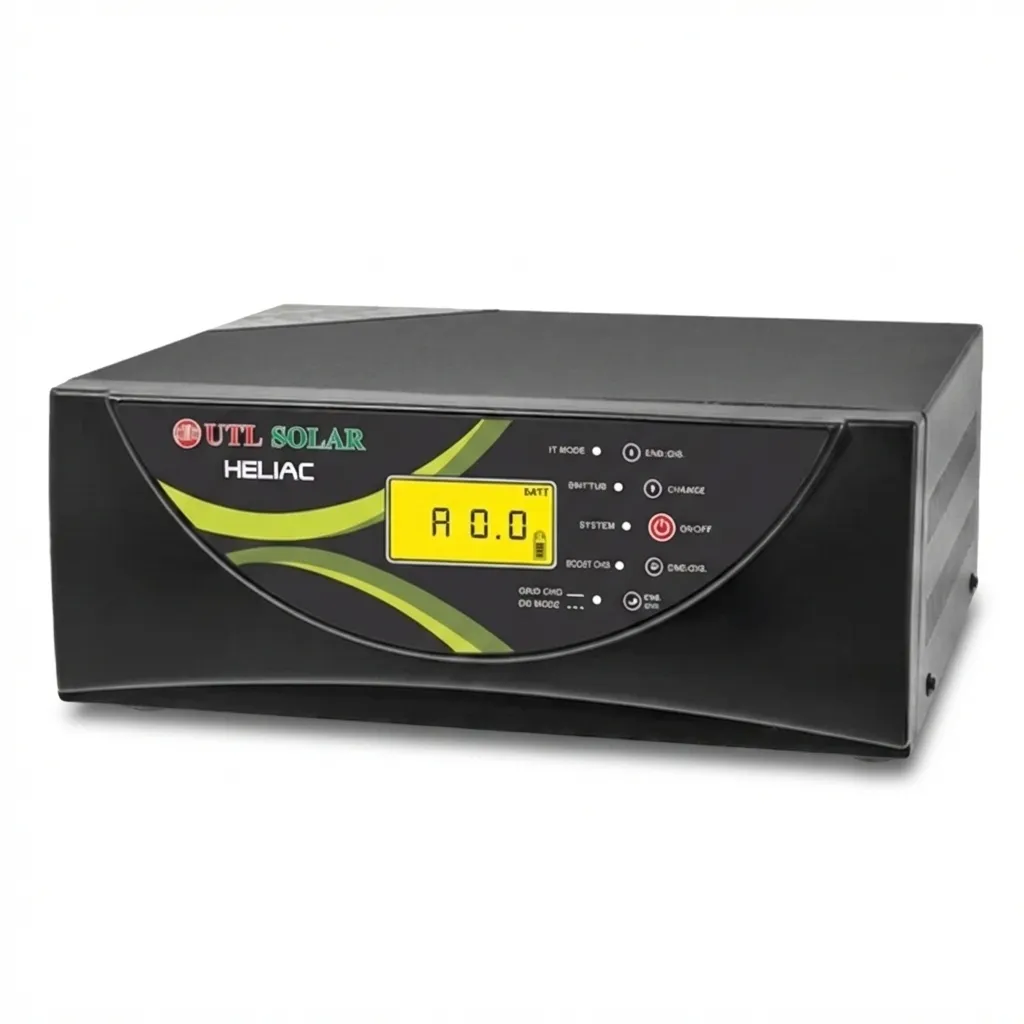

Product Description: UTL HELIAC SOLAR PCU 1500VA/24V
The UTL Heliac 2000 is a high-performance solar inverter designed for those who need a reliable and powerful 12V energy solution. With a 1500VA system rating, it is perfectly suited for handling modern household and office loads with maximum efficiency.
Technical Specifications (HL2000)
- System Rating: 1500 VA
- Output Waveform: Pure Sinewave
- Typical Efficiency: >85%
- Weight: 15 KG
- Dimensions (LxWxH): 300x306x167 mm
Key Performance Features
- Intelligent Operating Modes: Features three user-selectable modes—SMART, PCU, and HYBRID—allowing you to prioritize solar energy and reduce electricity bills.
- High Solar Capacity: Supports up to 1200W of solar panels with a solar input voltage (Voc) range of 17V–25V.
- Advanced Charging: Utilizes a 4-stage battery charging method (Bulk, Absorption, Float, and Equalize) to maximize battery health.
- Battery Versatility: Compatible with both Tubular and Lithium batteries, supporting a maximum capacity of 200AH.
- Ultra-Fast IT Mode: Ideal for sensitive electronics, offering a changeover time of less than 5ms when IT Mode is enabled.
- Smart Monitoring: The multi-color LCD displays critical data including Battery Voltage, Charging Current, Load percentage, and Operating Mode.
Comprehensive Protection Suite
The HL2000 is engineered for safety and longevity, featuring protections against:
- Overload and Output Short Circuit
- Battery Low and Battery High
- Battery Reverse Polarity (Fuse Blown)
- Input High/Low Voltage and frequency fluctuations
Recommended Solar Configurations
For optimal performance with the Heliac 2000, we recommend the following panel setups:
- 165W Panels: 6 panels in parallel
- 335W Panels: 4 panels in parallel
- 400W Panels: 3 panels in parallel
- 540W Panels: 2 panels in parallel
